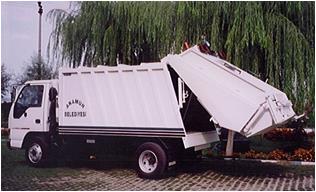

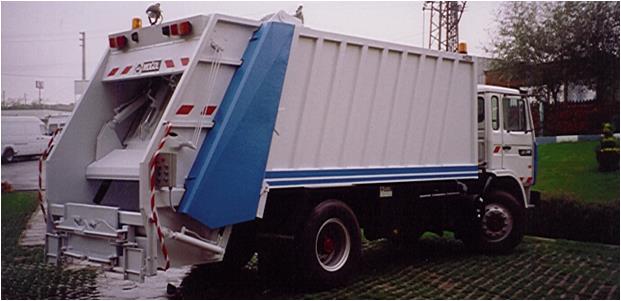

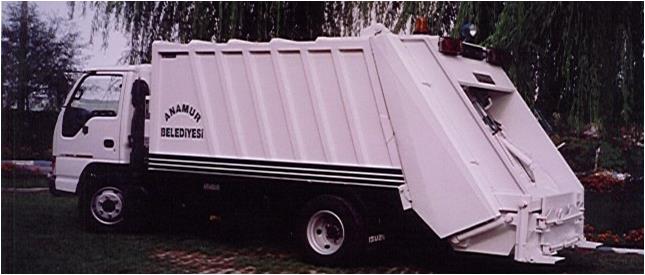

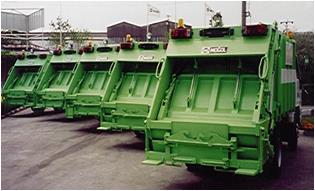

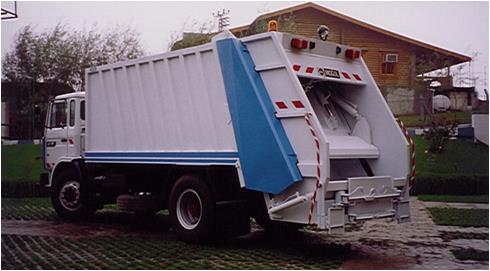

GARBAGE TRUCK
20 m3 / 17 m3 / 15 m3 / 13 m3 / 10 m3 / 8 m3 / 6 m3
SPECIFICATIONS
Full hydraulic manual or automatic control
*Automatic control operating electronically and pneumatically
*Automatic control panel
Emergency shut down button and driver warning button The system made of a suitable pump,valve,piping and oil tank for the hydraulic system together with the best hydraulic components in the market, operates at a pressure of 120-140 bar with a compression ratio of
1/5 or 1/3
Body construction; roof and sides 3 mm , floor 4mm
Ejection panel

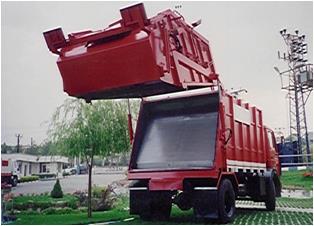

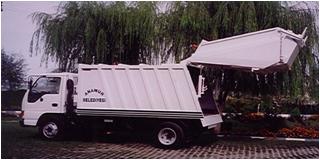

Tailgate includes packer and carrier assemblies
Special gasket seal between body and tailgate
1-1.5 m3 hopper made of iron steel sheets construction
Safety lever( in case the tailgate opens)
Waste water storage reservoir with automatic discharge that prevents the leakage of garbage liquid to the streets
Hydraulic container handling system that is suitable with containers of all size
The vehicle is painted with plastic based material against corrosion
The most suitable PTO for the vehicle and is operated from the driver’s cab

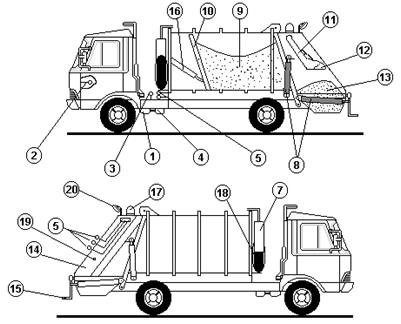

*automatic control
1- PTO
2- PTO lever
3- Engine speed lever
4- Hydraulic pump

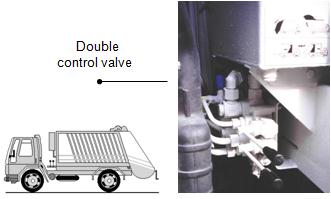

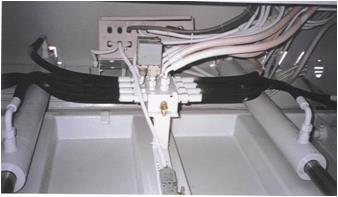

5- Hydraulic control valves
6- Hydraulic piping
7- Hydraulic oil tank
8- Hydraulic cylinders
9- Garbage body
10- Ejection panel
11- Carrier
12- Packer
13- Hopper
14- Tailgate
15- Container handling system
16- Telescopic cylinder
17- Warning light
18- Spare tyre and spare tyre space
19- Driver warning button and
20- Working light
