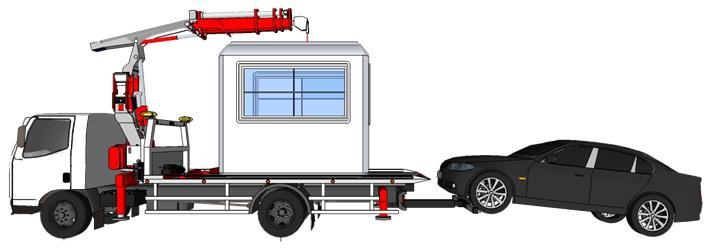

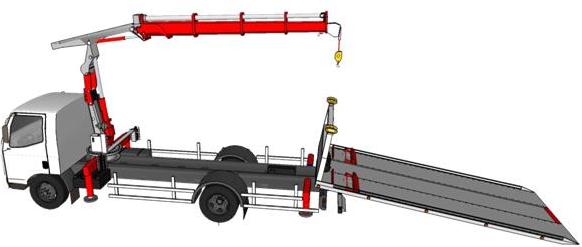

SLIDE BED WITH CRANE
Body and crane type are determined in compliance with to the width, length and height of the load to be carried
Fully hydraulic
Dual control
Safety control
Practical usage
Easy maintenance
On shelf spare parts
After sale services

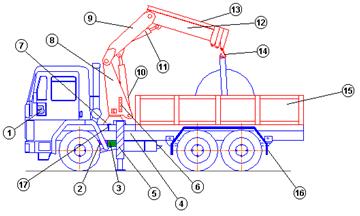

SPECIFICATIONS
1- PTO lever
2- PTO
3- Pump
4- Oil tank
5- Outriggers
6- Control valves
7- Turntable
8- Crane main boom
9- Crane second boom
10- Main boom cylinder
11- Second snorkel lifting cylinder
12- Telescopic boom
13- Boom cylinders
14- Hook
15- Body - slide bed
16- Mudguard
17- Engine speed lever
Outrigger
FOR LIFTING,
CARRYING
AND UNLOADING
