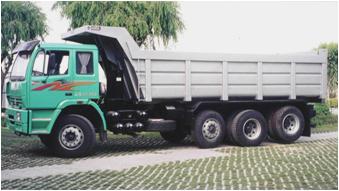

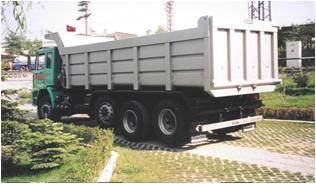

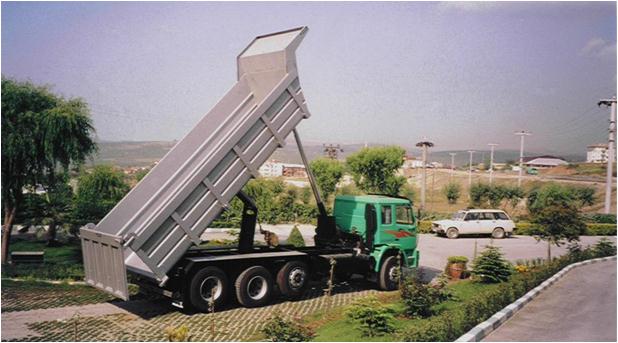

DUMP TRUCK
SPECIFICATIONS
Body and main structure made of steel sheets suitable for the truck capacity
PTO driven hydraulic pump and system
Hydraulic control valve
Telescopic lifting cylinder
Cylinder extraction stop point control system
Safety hopper assembly
Automatic rear gate opening system
Spare tyre space
High quality painting

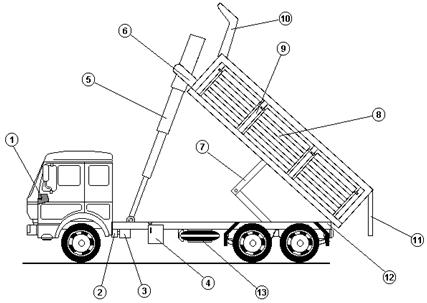

1- PTO lever
2- PTO
3- Pump
4- Oil tank
5- Telescopic cylinder
6- Cylinder mounting bracket and bearing
7- Hopper assembly
8- Dump body
9- Gate studs
10- Front body shield
11- Rear gate
12- Automatic rear gate opening system
13- Spare tyre
