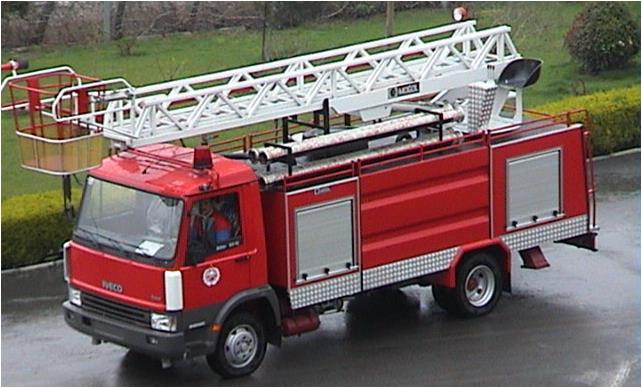

MODULAR AERIAL FIRE TRUCK

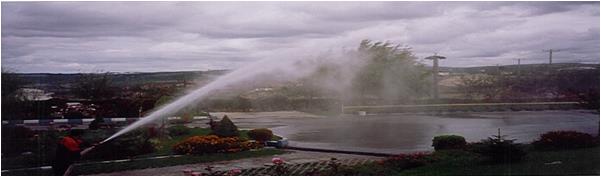

MONITOR 360° ROTATING,HORIZONTAL RANGE 40-60 mt

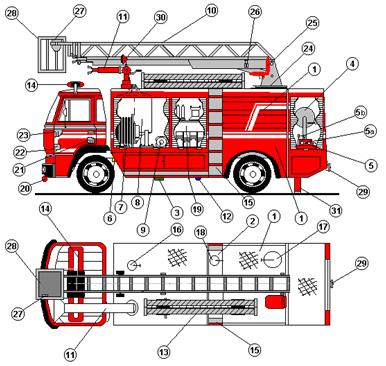

SPESIFICATIONS
1 - WATER TANK
2 - *FOAM TANK
3 - INTERMEDIATE GEAR BOX
4 - *WATER HOSE REEL AGAINST CHIMNEY FIRES
5 - FIRE PUMP
5a-DISCHARGING OUTLETS
5b-INDICATORS
6 - **PTO AND HYDRAULIC PUMP
7 - *DRY CHEMICAL HOSE REEL
8 - *DRY CHEMICAL POWDER PIPING EQUIPMENT
9 - *CO2 TANK
10 - *PORTABLE LADDER
10 - **12-24 m.HYDRAULIC AERIAL PLATFORM
11 - *MONITOR
12 - EXHAUST INJECTOR
13 - SUCTION HOSES
14 - AUDIO-VISUAL WARNING DEVICE
15 - LADDER FOR CLIMBING UP TO VEICHLE
16 - *DRY POWDER FILLING INLET
17 - WATER TANK MANHOLE
18 - FOAM TANK COVER
19 - BODY AND TOOLKIT COMPARTMENT
20 - IRRIGATIONS
21 - INTERMEDIATE GEAR BOX LEVERS
22 - **PTO LEVER
23 - IRRIGATION ADJUSTMENT LEVER
24 - *LADDER TOWER
25 - OPERATOR SEAT
26 - KONTROL VALVES
27 - BASKET CONTROL VALVES
28 - BASKET
29 - FILLING INLET
30 - WORKING LIGHT
31 - **OUTRIGGERSI
3 ,stage pump
Tank made of 4mm,steel sheet or
*stainless steel sheet
Brass or aluminum fire pump
Local or *foreign brand gear box
360° rotating monitor
Foam system for liquid fuel fires
*Dry chemical powder for electrical fires
Irrigation system,adjustable for road width
Water suction injection
*Compartments with aluminum shuttres
Compartment lighting
Valves made of brass material
*Hose reel system against chimney fires
12-24 m.full automatic hydraulic aerial platform
Water level indicator
High quality painting
