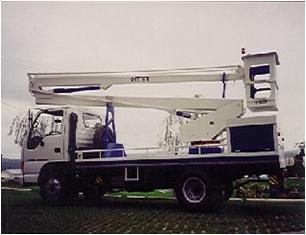

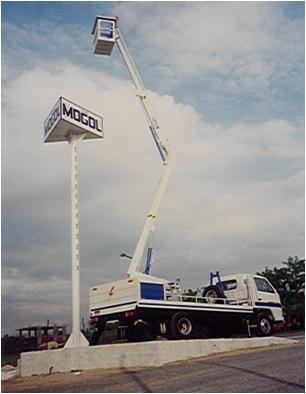

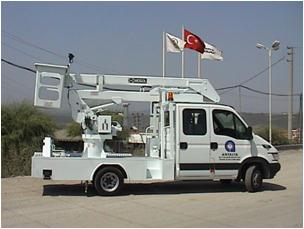

AERIAL PLATFORM
SPECIFICATIONS
Working height minimum 10-14mts
Weldox 700 boom steel sheets
360° Continuous rotation
Loading capacity of the basket max 180-200 kg
Basket insulation voltage 1000 V
Basket always parallel to the ground
Maximum working safety
2 or 4 outriggers on both sides
Cable remote control from the body and the basket
Entire system working electro-hydraulically
Automatic brake system and tilt alarm
High quality hydraulic and electric components
suitable for the system
Plastic based painting against corrosion

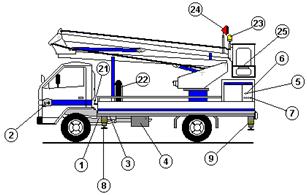

1- PTO
2- PTO control lever
3- Hydraulic pump
4- Hydraulic oil tank
5- 3 way valve
6- Direction valve safety lock
7- Out rigger control levers
8- Front out riggers (for some models)
9- Rear out riggers
10- Cable remote control on the body
11- Cable remote control of the basket
12- Emergency stop button on the body
13- Emergency stop button in the basket
14- System key
15- Rotary light key
16- Selenoid control valves
17- Hydro-motor and gear box for continous rotation
17a-360° Continous rotation gear
17b-360° Continous rotation oil system
17c-360° Continous rotation electric system
18- Basket balance stop button
19- Basket
20- Tool kit
21- Manual hydraulic hand pump
22- Spare tyre space
23- Yellow warning light
24- Work light
25- Climbing ladder
CABLE OR WIRELESS REMOTE
CONTROL
