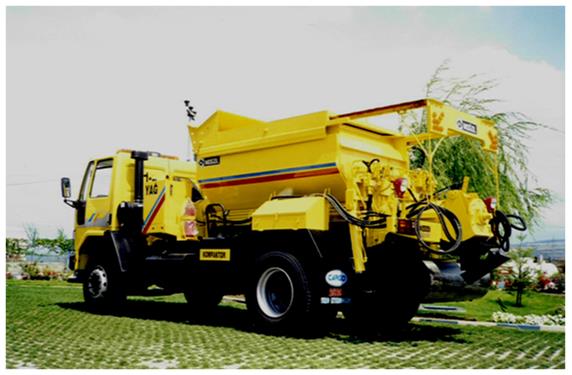

ASPHALT REPAIR MACHINE ROBOT

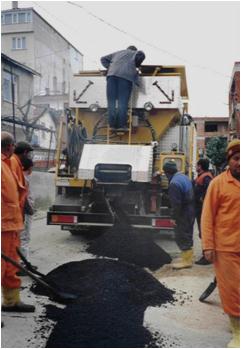

Asphalt robot is produced for patching the holes in the
asphalt. It can prepare and dry the patch hole, spray bitumen, pour the patch asphalt from its silo into the patch after spraying bitumen,compact the patch hole after pouring the patch aterial
and complete the work where,in ordinary repair systems, much more workers are needed.
SPECIFICATIONS
AUTOMATIC CONTROLLED ASPHALT PATCHING EQUIPMENT (ROBOT)

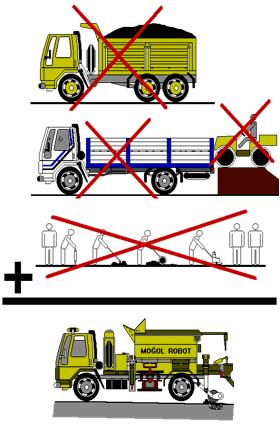

THE HIGHEST PRODUCTIVITY ONLY WITH TWO WORKERS
Fully automatic electro -hydraulic
controls
Isolated silo tank with the
capacity of gross 4m3 asphalt
Silo cover opens automatically
Bitumen tank with heater and
bitumen pump
Bitumen spraying gun
LPG cylinder and LPG burner
Air pressurized water and diesel
oil tanks
Allows electrical connection to
the city-power (220/380 V) in
order to keep the asphalt warm
with its electrical heaters
City power panel
Automatic control panel
WITH COMPACTOR

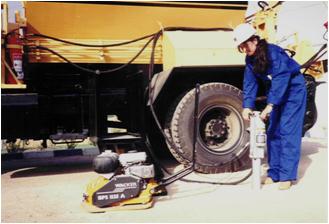

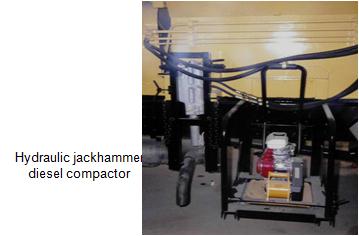

Hydraulic Jackhammer & diesel compactor

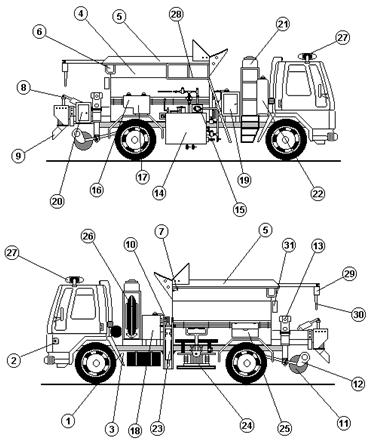

SPECIFICATIONS
1- PTO
2- PTO control switch
3- Hydraulic pump
4- Silo
5- Silo cover
6- Silo cover hydromotor /pistons
7- Adjustable silo cover limit switch
8- Asphalt discharge covers pneumatic
piston
9- Asphalt discharge outlet
10- Helical hydromotor and gearbox unit
11- Asphalt cylinder
12- Actuator motor
13- Cylinder pistons
14- Bitumen boiler
15- Bitumen pump and hydromotor
16- Water tank
17- Water tank air valve
18- Hydraulic oil tank
19- Main power panel
20- Control panel
21- LPG cylinder
22- Diesel oil cylinder
23- Hydraulic Jack-Hammer
24- Compactor
25- Machine tool
26- Spare tyre space
27- Audio visual warning device
28- Working platform
29- Warning lights
30- Hose hangers
31- Control valve blocks
