WATER TANKER
WATER TANKER
SPECIFICATIONS
Aesthetic formed elliptical tank made of
4mm. steel or *stainless steel sheet
Baffles in the tank
Arc (MIG) welding
Piping and valves made of steel or stainless
steel material
PTO lever and PTO
500 lts /min pumping at 2 Bar
Water hose reel and lance
Gear-box suitable ratio with the pump
**Hydraulic pump, Hydraulic system
Discharge hose couplings
One -piece or seperate storage cabinets
Epoxy painting on steel sheet
* Water suction injector
High quality painted outer surface
(*) Optional
(**) Optional or if necessary

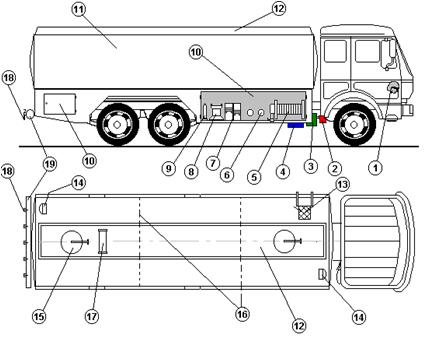

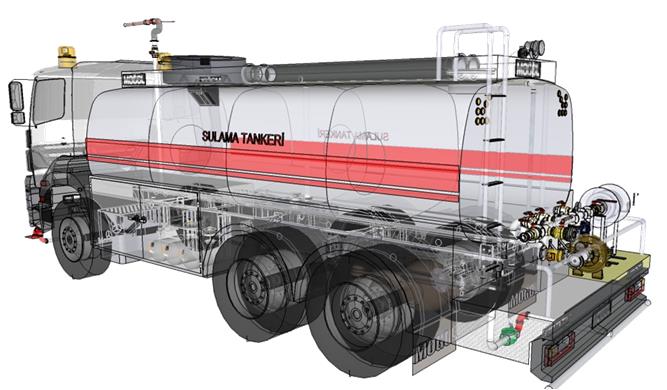

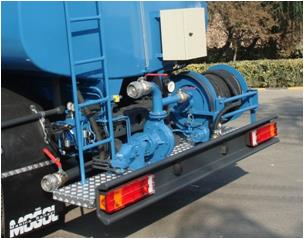

1- PTO lever
2- PTO
3- Gear-box
4- Pump
5- Hose reel
6- Discharge outlet
7- Discharge hose
8- Strainer
9- Lance
10- Compartments
11- Tank
12- Upper Pool
13- Ladder
14- Projector
15- Manhole
16- Baffles
17- Filling inlet
18- Tap
19- Water distribution collector
