SPECIFICATIONS
Working
height
minimum
16-18 mts
Heavy-duty
boom steel
sheets
360°
Continuous
rotation
Loading
capacity of
the basket
max 200-
250 kg
Basket
insulation
voltage 1000
V
Basket
always
parallel to
the ground
Maximum
working
safety
2 or 4
outriggers
on both
sides
Control
from the
body and the
basket
Entire
system
working
electro-
hydraulically
Automatic
brake
system and
tilt alarm
High quality
hydraulic
and electric
components
suitable for
the system
Plastic
based
painting
against
corrosion

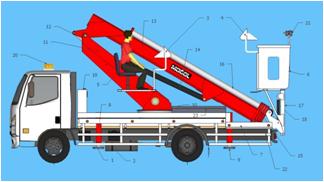

1 - PTO
2 - HYDRAULIC PUMP
3 - CONTROL PANEL ON THE BODY
4 - CONTROL PANEL ON THE BASKET
5 - OPERATOR CHAIR
6 - BASKET
7 - PLATFORM
8 - FRONT OUT RIGGERS
9 - REAR OUT RIGGERS
10 - HYDRO-MOTOR AND GEAR BOX FOR CONTINOUS ROTATION
11 - TURRET
12 - LEVELING CYLINDER
13 - MAIN BOOM
14 - BOOM MAIN BOOM CYLINDER
15 - TELESCOPIC BOOM
16 - TELESCOPIC BOOM CYLINDER
17 - BASKET LEVELING SYSTEM
18 - BASKET LEVELING SYSTEM CYLINDER
19 - HYDRAULIC OIL TANK
20 - WARMING LIGHT
21 - BASKET WORK LIGHT
22 - MANUEL HYDRAULIC HAND PUMP
23 - TOOL BOX

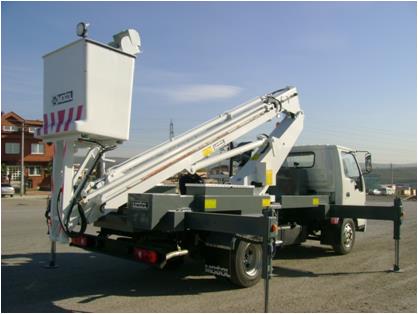

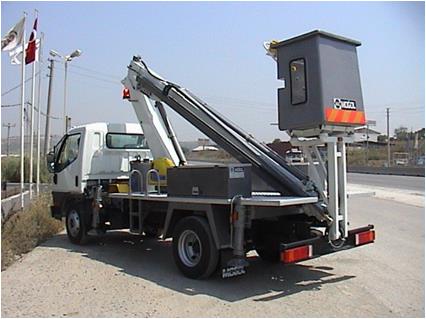

TELESCOPIC AERIAL PLATFORM
