AIRCRAFT REFUELLER
GENERAL FEATURES

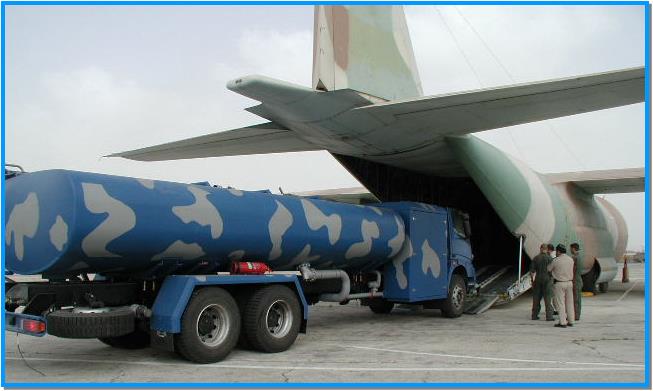

AIRCRAFT REFUELLER
AIRCRAFT DEFUELLER
CIRCULATION SYSTEM FOR TESTING AND REPAIRING.
LOADING FROM BOTTOM

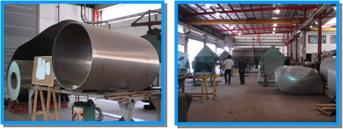

ALUMINUM TANK WITH NFPA -407 ve NFPA-385 STANDARTS
300 - 600 GPM PUMP
FILTER / SEPARATOR
PRESSURE GAUGE WITH DEADMAN AND INTERLOCK SYSTEM
PRODUCT METER
OVERWING AND UNDERWING NOZZLE WITH HYDROLIC HOSE REEL.

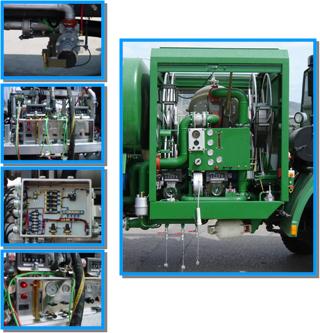

IN REFUELLER BOX,PNEUMATIC OPERATION CONTROL PANEL AND INTERLOCK SYSTEM.

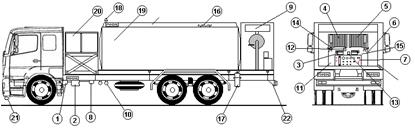

1 PTO
2 PUMP
3 METER
4 HOSE REEL
5 DEADMAN REEL
6 DEADMAN HOLDER
7 CONTROL PANEL
8 FLANGED STRAINER
9 SEPERATOR
10 BOTTOM LOAD NOZZLE
11 OVERWING NOZZLE
12 EMERGENCY SHUTOFF VALVE
13 DEFUEL CHECK VALVE
14 SHUTOFF VALVE
15 EMERGENCY SHUTOFF VALVE
16 TANK VENT HOOD
17 FIRE EXTINQUISHER
18 STROBE BEACON LIGHT
19 TANK
20 HIGH-LIFT FUELING PLATFORM
21 MANIFOLD EXIT
22 REAR BUMPER
