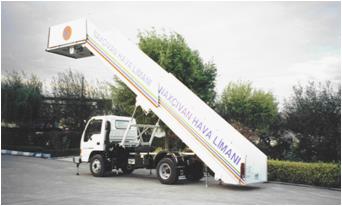

PASSENGER STAIR TRUCK
Safe and practical usage for passenger boarding
Suitable design for civilian aviation
Ability to reach the doors of any kind of crafts that are used for civilian aviation,2.400mm min -5.800mm max.
Special <formed main structure made from steel sheets
Special <formed one piece main and moving platform
Arc (MIG) welding
Movable boarding platform
PTO lever and PTO
High quality hydraulic pump ,valves and piping
Electro hydraulic cable remote control
Electronic and hydraulic safety systems
Automatic step lock
Out riggers equipped with locking valves
Step sizes suitable with civilian aviation standards
Steps made of high quality aluminum chequred plate
*Hammock
Easy and practical usage
Manual hand pump against breakdown
High quality painted outer surface

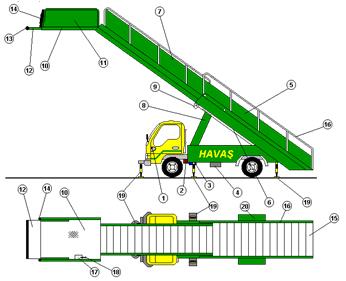

SPECIFICATIONS
1) PTO lever
2) PTO
3) Hydraulic pump
4) Oil tank
5) Fixed platform
6) Extract-retract cylinder
7) Moving platform
8) Lifting and tilt pistons
9) Step lock
10) Upper platform
11) Safety barrier
12) Moving platform
13) Moving platform buffer
14) Safety barrier buffer
15) Standard steps
16) Hand-rails
17-18)Manual hand pump and lever
19) Out riggers
20) Mudguard
