VACUUM TANKER FOR SEWAGE HANDLING
VACUUM TANKER FOR HANDLING SEWAGE AND WASTE WATER
SPECIFICATIONS
Aesthetical formed spherical tank made of 5mm
Steel or stainless steel sheets
Removable baffle in the tank
Arc(MIG)welding
Piping and valves made of steel or stainless
steel sheets
PTO lever and PTO
800-1500 lts/min automatic oiled vacuum pump
Oil tank
**Suction capacity: either horizantally 18 meters
and depth 2 meters or horizantally 2 meters and
depth 6 meters
Hose adaptors
One piece or separate compartments
Upper filling inlet safety valve with stainless
steel float
Bottom pump protection condense tank with
copper float
Cast iron 4 way valve
Tailgate opened hydraulic/manual
Special sealing gasket
Filling and draining outlet
*Automatic rapid draining outlet
Hose storage cabinets
Hoses
High quality painted outer surface

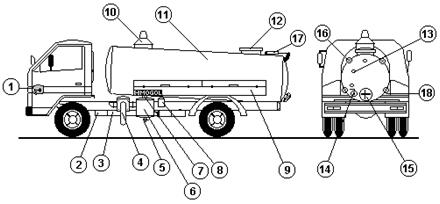

1- PTO lever
2- PTO
3- Vacuum pump
4- 4 way valve
5- Condense water drainage valve
6- Condense tank
7- Vacuum gauge
8- Oil tank
9- Hose storage cabinets
10- Upper float-safety valve
11- Tank
12- *Manhole
13- Level Indicator
14- Fill-drain valve
15- *Rapid draining outlet
16- Cover fixing butterfly bolts
17- Tailgate lifting piston
18- Tailgate lifting hydraulic pump
19- *Tailgate hinge assembly
(*) Optional
(**) According to sea level
