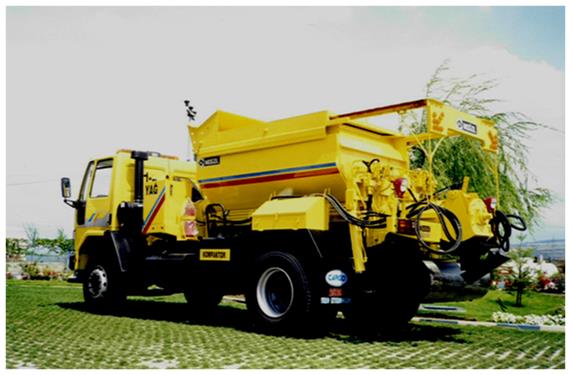

ASPHALT REPAIR MACHINE ROBOT
AUTOMATIC CONTROLLED ASPHALT PATCHING EQUIPMENT (ROBOT)

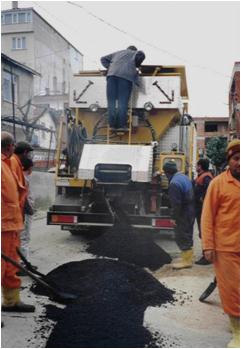

Asphalt robot is produced for patching the holes in the asphalt. It can prepare and dry the patch hole, spray bitumen, pour the patch asphalt from its silo into the patch after spraying bitumen,compact the patch hole after pouring the patch aterial and complete the work where,in ordinary repair systems, much more workers are needed.

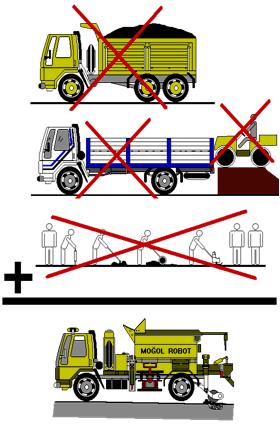

THE HIGHEST PRODUCTIVITY ONLY WITH TWO WORKERS
SPECIFICATIONS
Fully automatic electro -hydraulic controls
Isolated silo tank with the
capacity of gross 4m3 asphalt
Silo cover opens omatically
Bitumen tank with heater and
bitumen pump
Bitumen spraying gun
LPG cylinder and LPG burner
Air pressurized water and diesel oil tanks
Allows electrical connection
to the city-power (220/380 V) in order to keep the asphalt warm with its electrical heaters
WITH COMPACTOR

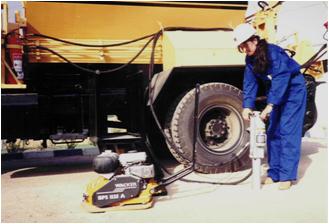

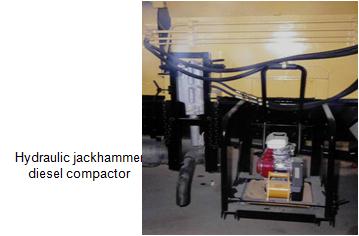

Hydraulic Jackhammer & diesel compactor
Automatic control panel
City power panel
