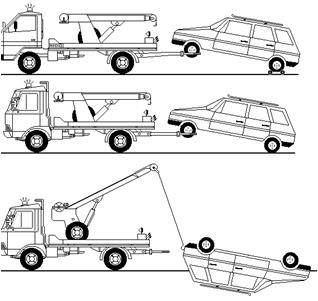

FOR TOWING AND RECOVERY PURPOSES

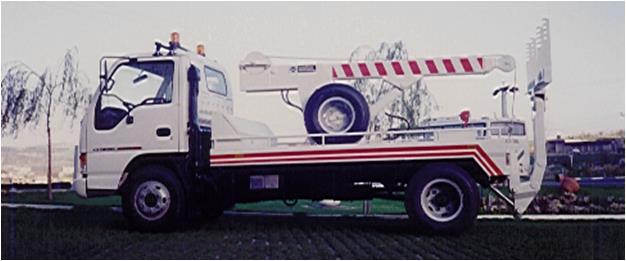

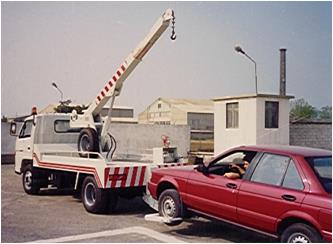

WRECKER RECOVERY BOOM
Hydraulic winch
SPECIFICATIONS
Body and main structure made of ST 37 steel sheets
PTO driven hydraulic pump and system
Hydraulic control valves
Telescopic boom
Equipped with 2 tones capacity winch
Engine speed lever
Warning light
Spare tyre space

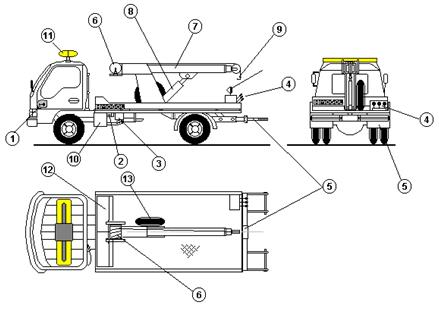

1- PTO lever
2- PTO
3- Pump
4- Control valves
5- Wheel-lift assembly
6- Tow winch
7- Boom
8- Boom piston
9- Tow hook
10- Oil tank
11- Signal lamp
12- Machine tool
13- Spare tyre
