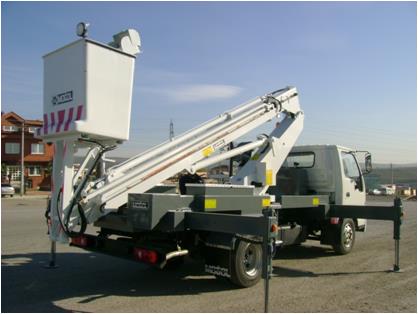

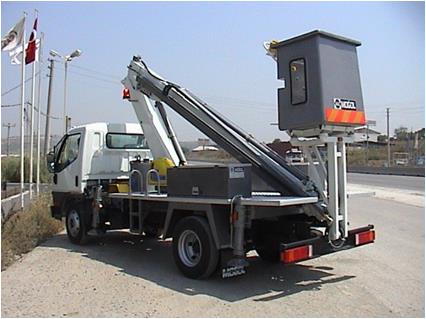

TELESCOPIC AERIAL PLATFORM
SPECIFICATIONS
Working height minimum 16-18 mts Heavy-duty boom steel sheets
360° Continuous rotation
Loading capacity of the basket max 200-250 kg
Basket insulation voltage 1000 V
Basket always parallel to the ground
Maximum working safety
2 or 4 outriggers on both sides
Control from the body and the basket
Entire system working electro-hydraulically
Automatic brake system and tilt alarm
High quality hydraulic and electric components suitable for the system
Plastic based painting against corrosion

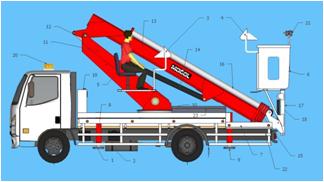

1 - PTO
2 - HYDRAULIC PUMP
3 - CONTROL PANEL ON THE BODY
4 - CONTROL PANEL ON THE BASKET
5 - OPERATOR CHAIR
6 - BASKET
7 - PLATFORM
8 - FRONT OUT RIGGERS
9 - REAR OUT RIGGERS
10 - HYDRO-MOTOR AND GEAR BOX FOR CONTINOUS ROTATION
11 - TURRET
12 - LEVELING CYLINDER
13 - MAIN BOOM
14 - BOOM MAIN BOOM CYLINDER
15 - TELESCOPIC BOOM
16 - TELESCOPIC BOOM CYLINDER
17 - BASKET LEVELING SYSTEM
18 - BASKET LEVELING SYSTEM CYLINDER
19 - HYDRAULIC OIL TANK
20 - WARMING LIGHT
21 - BASKET WORK LIGHT
22 - MANUEL HYDRAULIC HAND PUMP
23 - TOOL BOXA
